A versatile digital rack mixer with exceptional sound quality.

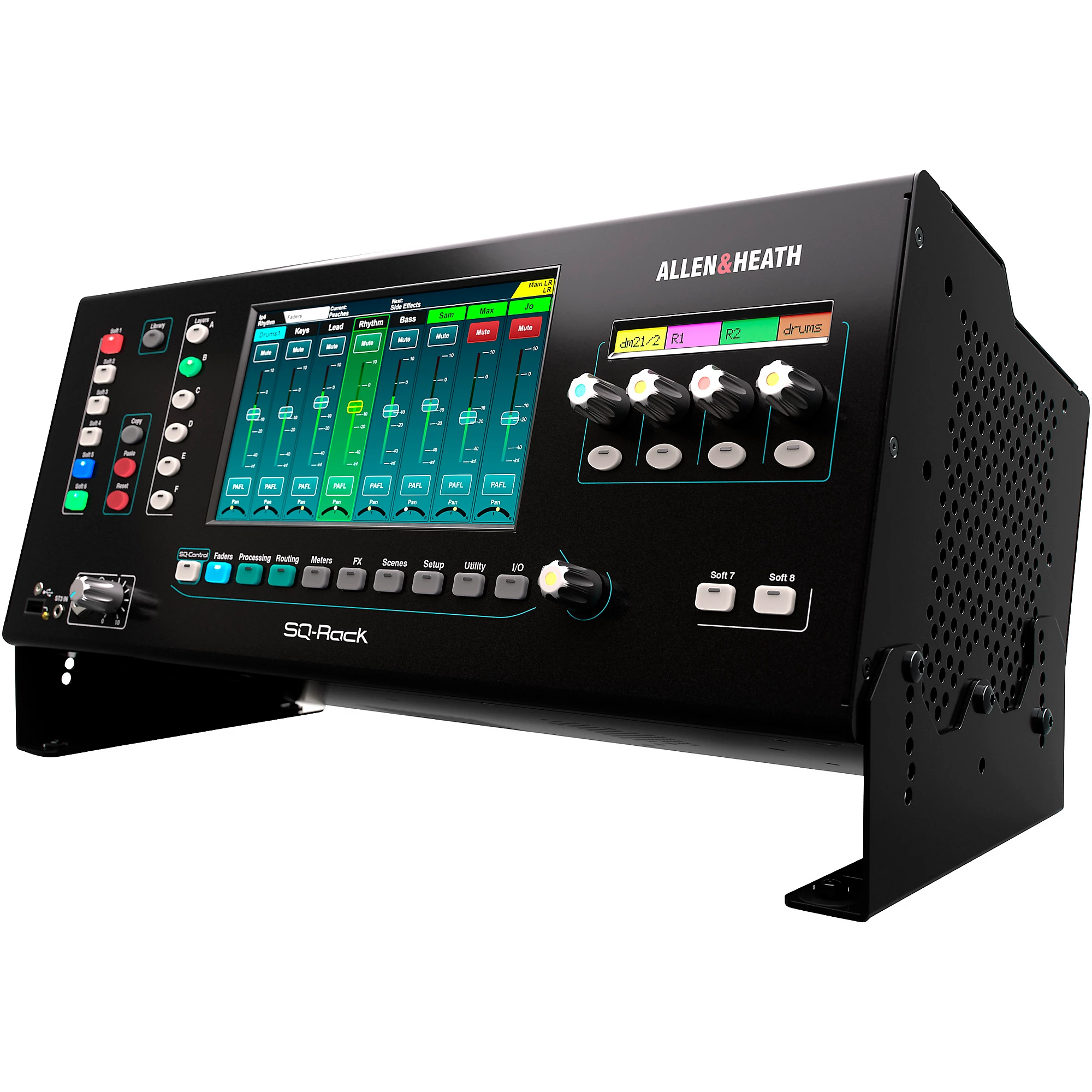

Experience unmatched audio fidelity and seamless integration with the Allen & Heath SQ-Rack 48-channel digital rack mixer. This powerful 4U rack solution incorporates the renowned 96 kHz XCVI core, delivering pristine sound quality with ultra-low latency. Whether you’re outfitting a venue, building an in-ear monitoring system, or taking your touring band to the next level, the SQ-Rack is designed to meet the demands of the most discerning audio professionals.

Pure 96kHz sound with advanced mic preamps.
The SQ-Rack’s 96kHz XCVI FPGA core provides 48 input channels that mix with the main LR bus and 12 stereo mix outputs, ensuring exceptional audio integrity. You’ll capture every nuance thanks to the digitally controlled, fully recallable mic preamps, which offer up to +60dB of gain and industry-standard 48V phantom power. With switchable -20dB pads to handle high-power signals up to +30dBu, these preamps deliver outstanding clarity and dynamic range.

Unmatched connectivity with the Everything I/O ecosystem.
Seamlessly integrate the SQ-Rack into your setup thanks to its extensive analog and digital I/O options. The local SLink port provides intelligent AoIP connectivity, allowing you to expand inputs and outputs using Allen & Heath’s renowned Everything I/O ecosystem via a single digital cable. This facilitates remote preamp control, direct connection to Allen & Heath Personal Mixing Systems, and integration with other compatible mixers.

Flexible expansion with optional cards and USB recording.
Take your system to the next level by installing optional cards in the SQ-Rack’s I/O port. Dante, Waves, MADI, and additional SLink support expands your multi-channel digital routing and processing capabilities. You can even connect directly to a computer or drive via USB for easy multi-track recording and playback, streamlining your workflow.

Intuitive Operation with Touch Control and Apps.
With an emphasis on speed and ease of use, the SQ-Rack offers comprehensive control options. The 7″ color touchscreen and dedicated fader display with fader sends put everything at your fingertips. The customizable SQ-Control display simplifies mixer operation. For maximum flexibility, remote operation is easy with the SQ-MixPad, SQ-4You, and SQ-Control apps from your smartphone, tablet, or computer.

Features
: 48 input channels: 16 XLR mic/line, two 1/4″ TRS stereo, one 3.5mm stereo, AES digital output;
36 buses in total: 12 stereo mix/group + main, PAFL bus, 14 assignable analog outputs;
Powerful connectivity: SLink for remote audio, optional card slot for Dante/Waves/MADI;
Intuitive control: 7″ touchscreen, eight programmable keys, four SoftRotary buttons, six layers for 96 channels



SQ-RACK 48-Channel, 96 kHz, XCVI Core Rackmount Digital Mixer with 7″ HD Capacitive Touchscreen. Specifications:
Inputs (Mic/Line):
Mic/Line Inputs: Balanced XLR, with full callback.
Input Sensitivity: -60 to +0 dBu.
Switchable Pad: -20 dB.
Analog Gain: 0 dB to +60 dB, 1 dB steps.
Maximum Input Level: +30 dBu.
Input Impedance: >5 kΩ.
THD+N (Unity Gain at 0 dB): 0.002%, -92 dBu (20 Hz–20 kHz, AES Direct Output at 0 dBu, 1 kHz).
THD+N (Average Gain at +30 dB): 0.003%, -91 dBu (20 Hz–20 kHz, AES Direct Output at -30 dBu).
Phantom Power: +48 V (+3 V / -2 V)
Stereo Line Inputs
Connectors ST1, ST2: Balanced, 6.35 mm TRS jack
Connector ST3: Unbalanced, 3.5 mm stereo mini-jack
Input Sensitivity (ST1, ST2 / ST3): Nominal +4 dBu ST1, ST2 / 0 dBu ST3
Clipping: +/-24 dB
Maximum Input Level (ST1, ST2 / ST3): +22 dBu / +18 dBu
Input Impedance: >7 kohm
Outputs
XLR Outputs: Balanced, XLR
Outputs A and B: Balanced, 6.35 mm TRS jack
Source: Patchable
Output Impedance: <75 ohm
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Output Residual Noise: -90 dBu (muted, 20 Hz-20 kHz) Balanced XLR

AES Digital Output

, 2 channels Sampling Rate: 96 kHz (default with SRC Off) Switchable Output Sampling Rates: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz Output Level: 2.5 Vpp balanced, 110 ohm termination SLink Connection Connector: Neutrik EtherCON (RJ45) Modes : dSnake Mode (48 kHz devices): 40 input channels, 20 + 40 output channels (ME) DX Mode (96 kHz devices): 32 input channels, 32 output channels GigaACE/GX Mode (96 kHz devices): 128 input channels, 128 output channels Processing Dynamic Range: 112 dB Frequency Response: +0/-0.5 dB 20 Hz–20 kHz Dynamic Headroom: +18 dB Internal Operating Level: 0 dBu THD+N (Mic/Line to Main Output L/R with Unity Gain: 0.006%, -84 dBu (20-20 kHz) Latency: <0.7 ms (Local Mic Input to Main Output L/R) Physical Specifications

Dimensions:

Unit only: 430 x 214 x 173 mm (16.9″ x 8.4″ x 6.8″) Shipping Box: 545 x 350 x 265 mm (21.5″ x 13.8″ x 10.5″)

Weight :

Unpackaged: 5.8 kg (12.8 lb)
With packaging: 8 kg (17.7 lb) Power
supply:
Mains: 100-240 V AC 50/60 Hz
Maximum power consumption: 75 W
Control
Touchscreen: 7″ capacitive, 800 x 480 resolution, 24-bit RGB
Programmable keys: 8
Soft rotary keys: 4
Mute groups / DCA groups: 8
Network: Ethernet TCP/IP for MIDI and
MIDI control: TCP/IP and USB-B
Footswitches: Single or dual, momentary or latching
Audio tools
RTA: 2 x 31-band (stereo) or 61-band (mono) 20-20 kHz
Signal generator: Assignable to any input or mix, sine/white/pink/bandpass noise
Talkback: Dedicated input with assignable gain, pad, 48 V and 12 dB/oct high-pass filter
USB Audio USB

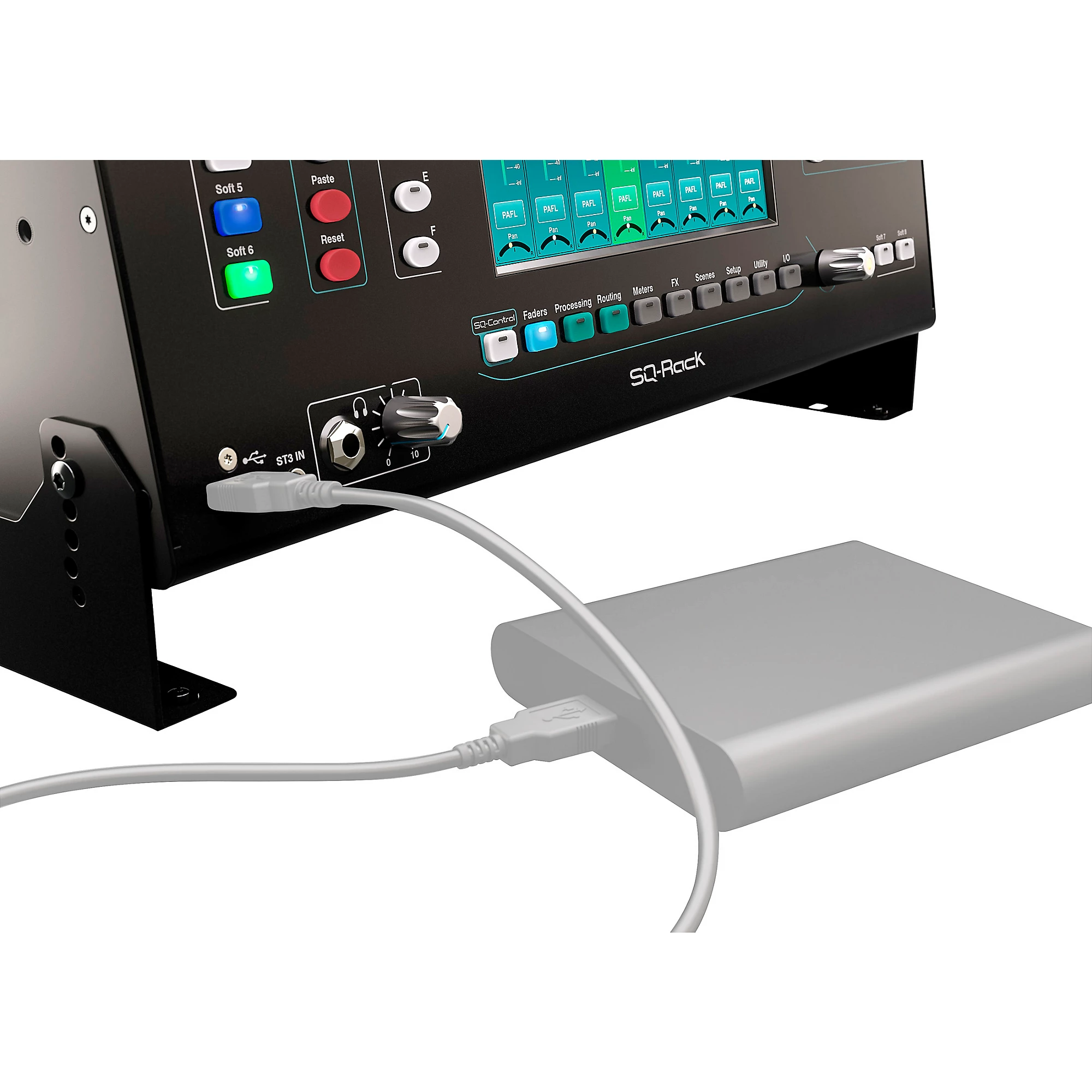

-A SQ-Drive: Stereo (2-channel) recording and playback (1/2 Channel) at 96 kHz, 24-bit
Multitrack Recording: 1-16 channels at 96 kHz, 1-32 channels at 48 kHz, 24-bit WAV
USB Audio Streaming (USB-B): Compatible with Core Audio, ASIO/WDM for Windows DEEP Preamp
Plugins
: Tube Stage
DEEP Compressors: Opto, 16T, 16VU, PeakLimiter76, Mighty, OptTronik, Bus
DEEP Graphic Equalizers: Proportional Q, DIGI-GEQ, Hybrid
RackFX Units: De-Esser, DynEQ4, MultiBD3, MultiBD4, Bucket Brigade, Echo, Hypabass
